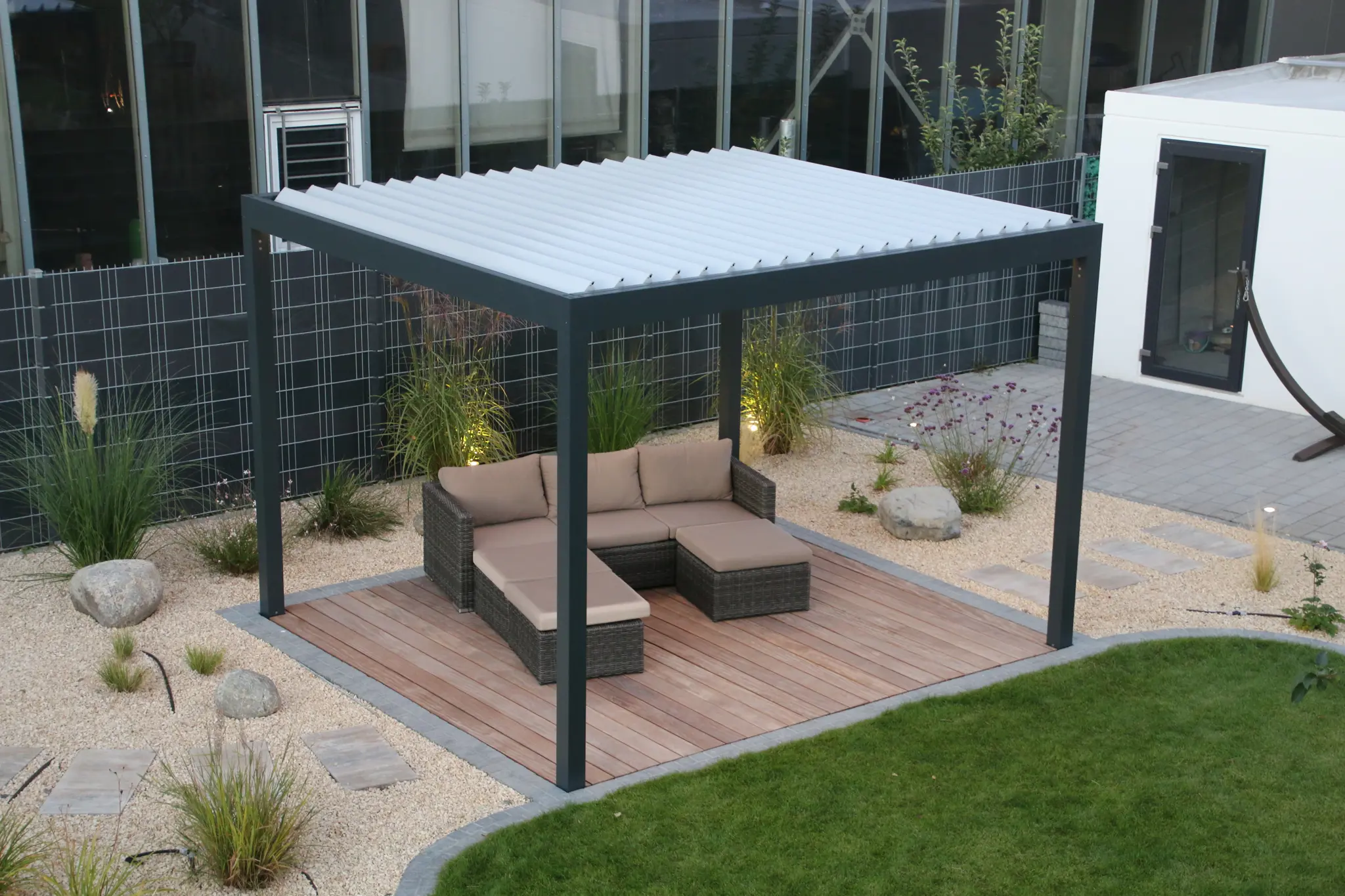

Bioclimatic Pergola ARTOSI

Self-supporting ARTOSI bioclimatic pergola with innovative and clean design from the development department of ISOTRA. The basic dimensions of the product – width 4,5 m and slide-out/extension up to 7 m – meet the strict requirements for the current comfort.

Aluminum slat can be oriented from 0° to 130°, of course there is a seal and slant of the slats for the controlled drainage of water. Up to a width of 4000 mm, the load capacity of the slats is up to 116 kg/m2. From a width of 4000 mm, the load capacity of the slats is up to 90 kg/m2. Shading components and LED lighting can be integrated into the pergola.

The advantage of the ARTOSI pergola is the possibility of dividing the roof into more independent sections, which are individually controlled according to the position of the sun’s rays. Possibility to place props up to 1 m outside the corner of the pergola inwards.

Benefits & advantages

The pergola is produced with high accuracy
Possibility to place props up to 1 m outside the corner of the pergola inwards
Low stand height of the roof profile including slat opening – 25 cm in total
Possibility of dividing the roof slats into more independent sections, separately controlled
Clean and elegant design
Easy assembly / disassembly of the slats and great variability of installation
Angle of slat opening 130°
Possibility of a LED strip on the sides of the pergola slide-out
Possibility of integrating shading technology
Wind resistance class 6
Price corresponding to the product parameters
Our own development
It protects against rain when the slats are completely closed, while the water is always led away at least by one stand
Guarantee: 5 years and LED lighting: 2 years

Dimensions

Lenght slide-out (min / max):

1440 mm / 7000* mm
Width (min / max):

1000 mm / 4500 mm
Underpass height (min / max):

500 mm / 3000 mm
Area (max)

31,5 m²

* It is necessary to split the pergola into 2 separate sections (2 engines) from the extension 5,400 mm.
From 6,121 mm slide-out, pergola has 6 props.

Handling

electric drive

remote control

Serves for opening, tilting and closing aluminum slats in the pergola roof

Assembly options

Freestanding, slats parallel to the shorter side of the pergola
Max. dimensions for 4 props: 6 × 4,5 m
Max. dimensions for 4 + 2 props: 7 × 4,5 m
In the wall, the slats parallel to the shorter side, the wall parallel to the slats
Max. dimensions for 2 props: 6 × 4,5 m
Max. dimensions for 2 + 2 props: 7 × 4,5 m
In the wall, slats parallel to the shorter side, the wall perpendicular to the shorter side
Max. dimensions for 2 props: 6 × 4,5 m
Max. dimensions for 2 + 2 props: 7 × 4,5 m
